8. Appendices

8.1. Appendix A: Using the Pro Development Kit

The user_periph_setup.h file contains hardware settings related to the Development Kit used. The default is the ProDev Kit.

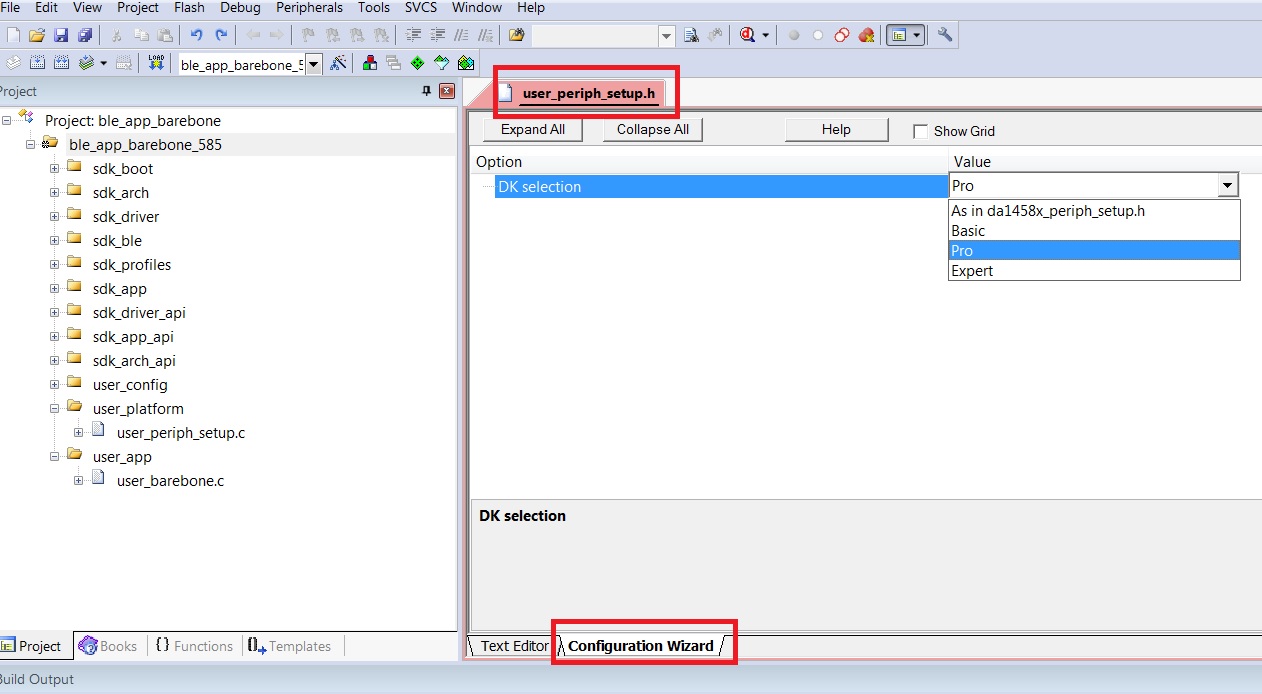

Figure 33 Hardware Settings for Pro Development Kit

8.2. Appendix B: Latency Timer of the FTDI cable

If an external FTDI cable is used to burn the OTP (or to download the image into the external memory), the latency timer of the FTDI cable has to be changed from 15 ms to <10 ms.

To change the latency timer:

1. In the Windows Device Manager, expand the list of COM ports.

2. Right click on the required COM port and select Properties.

3. In the Port Settings tab, click Advanced.

4. Set the Latency Timer to < 10 ms.

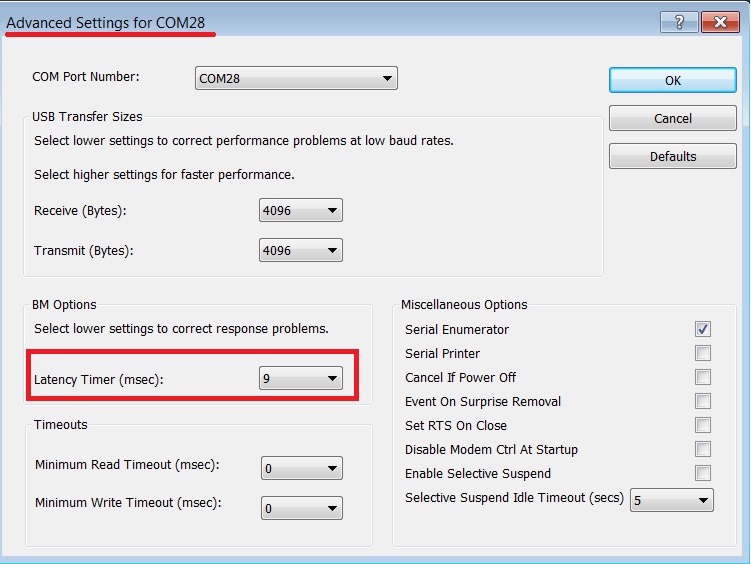

Figure 34 FTDI Latency Timer

8.3. Appendix C: Battery Connection ‘Workaround’

There is a small hardware malfunction; when the board operates on battery (J11 jumper on 2-3), the RST signal is permanently high.

When USB is disconnected, T_RESET becomes low and the invertor U7 RST is high. This prevents the board from operating.

The workaround is to dismount R84, see Figure 35.

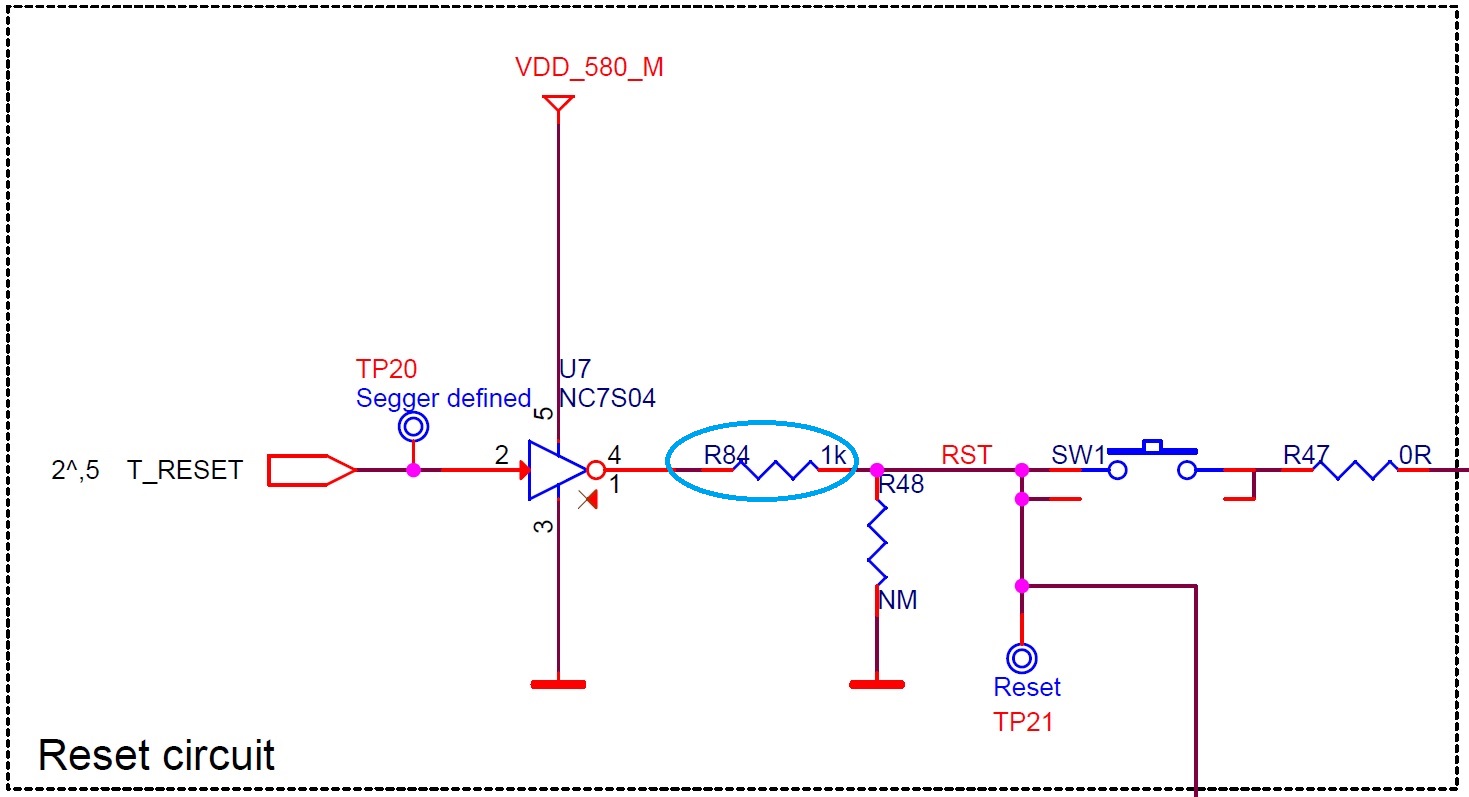

Figure 35 Reset Circuitry to Dismount R84

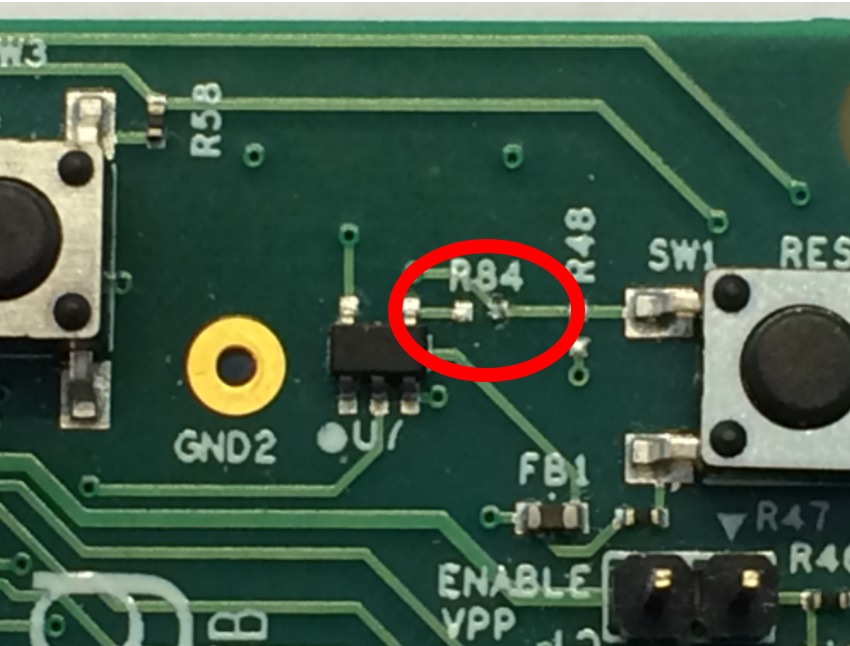

Figure 36 R84 Location

8.4. Appendix D: Power Bouncing Workaround

DA14585/586 daughterboards are supplied from the motherboard through a jumper in header J11. See the 3V3 Generation and battery selection for DA14580 and Peripherals section in the DA14585/586 DEVKT-Pro MAINBOARD Electrical Schematic.

Inserting this jumper when the daughterboard is mounted on the motherboard may cause bouncing issues. Α hardware workaround is implemented on DA14585 and DA14586 QFN40 daughterboards.

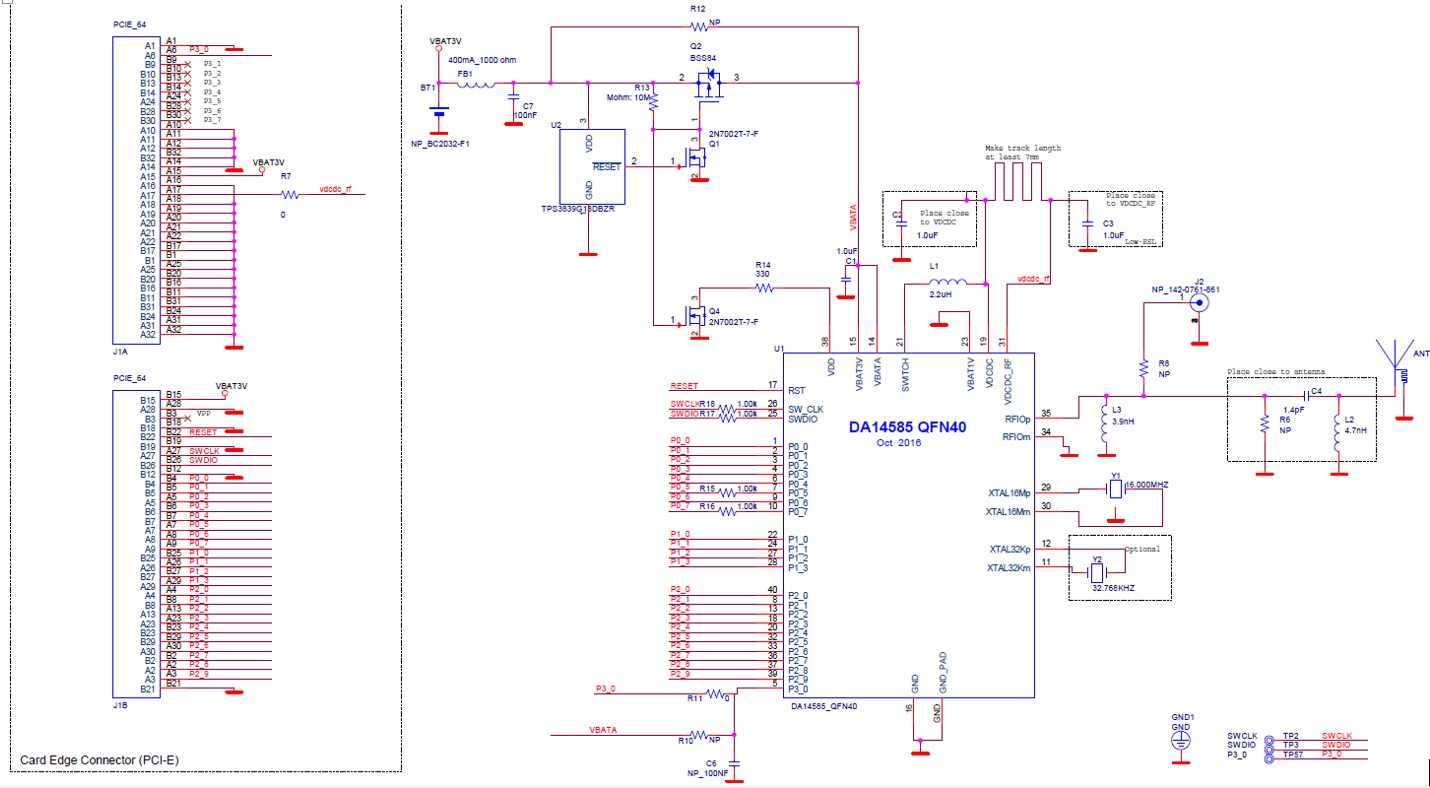

Figure 37 DA14585/586 QFN40 Daughterboard (321-10-x)
