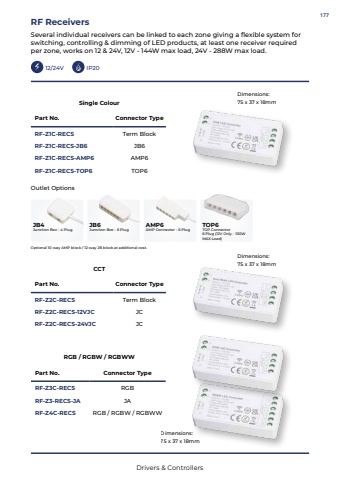

177Drivers & ControllersRF ReceiversSeveral individual receivers can be linked to each zone giving a flexible system for switching, controlling & dimming of LED products, at least one receiver required per zone, works on 12 & 24V, 12V - 144W max load, 24V - 288W max load.IP2012/24VOutlet OptionsJB4Junction Box - 4 PlugJB6Junction Box - 6 PlugAMP6AMP Connector - 6 PlugTOP6TOP Connector6 Plug (12V Only - 100W MAX Load)Optional 10-way AMP block / 12-way JB block at additional cost.Single ColourPart No. Connector TypeRF-Z1C-RECS Term BlockRF-Z1C-RECS-JB6 JB6RF-Z1C-RECS-AMP6 AMP6RF-Z1C-RECS-TOP6 TOP6CCTPart No. Connector TypeRF-Z2C-RECS Term BlockRF-Z2C-RECS-12VJC JCRF-Z2C-RECS-24VJC JCRGB / RGBW / RGBWWPart No. Connector TypeRF-Z3C-RECS RGBRF-Z3-RECS-JA JARF-Z4C-RECS RGB / RGBW / RGBWWDimensions:75 x 37 x 18mmDimensions:75 x 37 x 18mmDimensions:75 x 37 x 18mm
